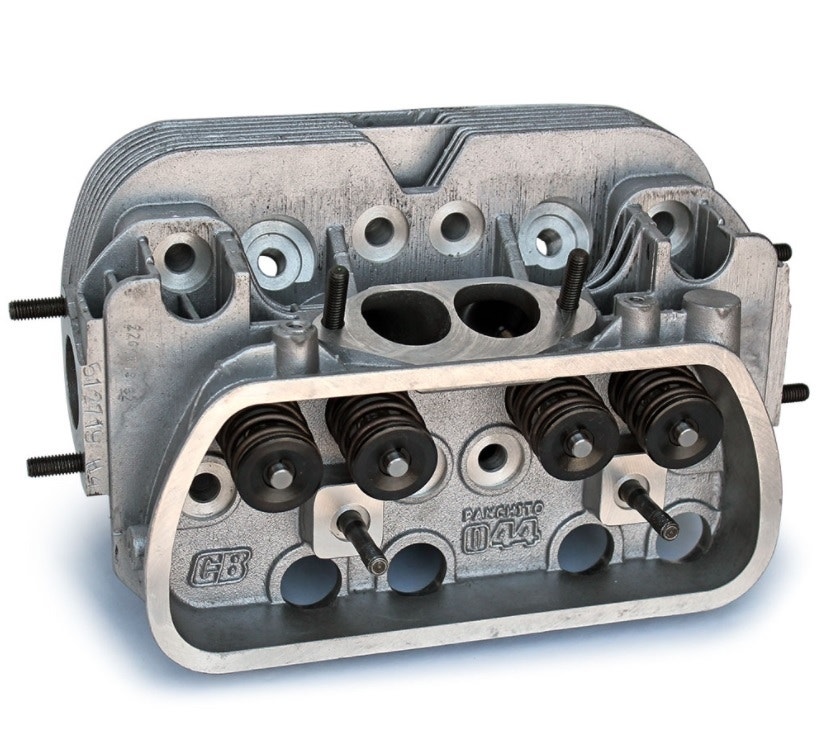

Panchito Cylinder Head 94mm 40×35.5mm Single Spring

Description

Dyno-proven ports with 40mm x 35.5mm valve sizesSuperflow™ 600 tested for optimal air flow and port velocity62cc intake port flows 162 CFM; 35.5mm exhaust with reduced bowl sizeExtra material around the combustion chamber for larger boresHigh quench 54cc combustion chamber, ideal for high compressionFeatures 12mm spark plug holes and Supergrip stainless steel valvesElevate your engine’s performance with the CB Performance Panchito 044™ Cylinder Heads, developed in collaboration with AutoLinea, a leading OEM supplier. Each head undergoes rigorous quality control to ensure top-notch metallurgy and machining, reflecting AutoLinea’s ISO9001:200e standards. The Panchito 044™ features race-proven port designs, meticulously engineered on the Superflow™ 600 flow bench for unmatched port velocity and airflow. With a 40mm intake port and 35.5mm exhaust, this head delivers exceptional performance, offering impressive low-end and mid-range power without sacrificing top-end capability.Designed to fit 1600-based engines in T-1, T-2, and T-3 VW models, the Panchito 044™ is built with additional material around the combustion chamber to support larger bore cylinders. The high quench combustion chamber, with a volume of 54cc, is perfect for high compression setups and bore sizes ranging from 85.5mm to 94mm. Standard features include 12mm spark plug holes, Supergrip 214N stainless steel valves with Stellite tips, chromoly valve spring retainers, and tungsten carbide alloy valve seats. Sold individually, this head ensures superior strength, reliability, and performance for your engine build.
