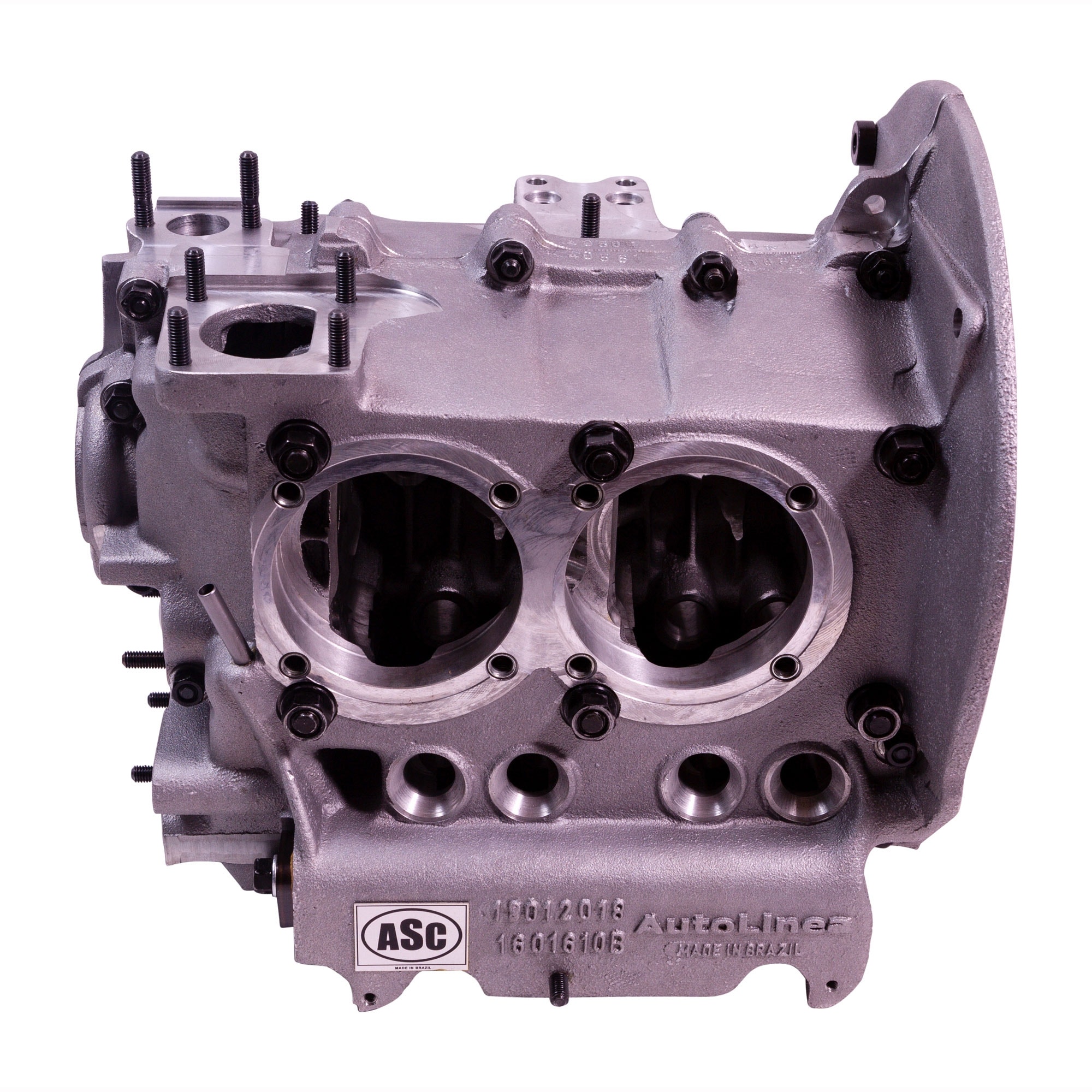

Crankcase 90.5/92mm Cylinders 8/10mm Case Savers

Description

Universal design with Type 3 oil filler and Type 2 engine bar mountsReady cut for 90.5/92mm barrels and pistonsSupplied with both 8mm and 10mm case saversPre-drilled and tapped for full flow oil system (3/8″ NPT thread)Reinforced behind number 3 cylinder for added strengthBarrel mating surfaces machined for consistent deck heightsClearanced for up to 82mm VW journal crankshafts, with the option for 86mmIntroducing the Aluminium Super Race Crankcase by Auto Linea—a high-performance, durable crankcase designed for versatility and strength. This universal crankcase is compatible with Type 2 and Type 3 engines and requires no additional machining. Constructed from robust aluminium, it offers enhanced performance and reliability, making it an ideal choice for both racing and everyday driving. Key modifications ensure ease of installation and long-lasting durability, allowing you to maximise your engine’s potential.The crankcase comes pre-cut for 90.5/92mm barrels and pistons, and includes essential features like a full flow oil system with a pre-installed blanking plug. The design also addresses common weak points by reinforcing the area behind the number 3 cylinder and providing clearance for long stroke crankshafts up to 86mm. Whether you’re upgrading an existing engine or building a new one, the Auto Linea Aluminium Super Race Crankcase is engineered to deliver top-tier performance and reliability. Can be used with either 8 or 10mm head studs.
